BIGTREETECH Manta E3EZ V1.0 for Ender 3

SKU: 1020000407

Regular price $44.98

/
●Running Klipper or OctoPrint.
●Board to board connection, compatible with CB1/CM4.
●Perfectly fit Ender 3.
●New technology--work with EZ driver.
●Rich interface - suitable for 3d printer DIY.

American Express Apple Pay Mastercard PayPal Visa


Global Shipping    180-days Warranty    7-days Refund

Earn BQ Maker Coins to get cash discounts when buying this product.

Product Description:

The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates “Manta” technology (B2B connectors for the CB1 or CM4 modules) and “EZ” technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper. Due to there being no need for an external raspberry pi the Manta series saves you messy cabling and results in a highly compact implementation.

Display Compatibility:

MANTA series motherboards support SPI and HDMI screens.

Files:

The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, see this link:

https://github.com/bigtreetech/Manta-E3EZ



Product Description

Direct Upgrade for Ender-3

Drop-in replacement for Ender-3. The mounting holes are in the same location which means you just need to position it and screw it down.

5 Mistake Proof EZ Driver Slots

Select between SPI and UART in firmware. No need for jumpers. No risk of reverse insertion. Plug them in with the confidence of knowing that your drivers will start up without releasing the magic smoke.

High Performance You Can Rely On

32-bit, 64 MHz ARM Cortex-M0+ series STM32GOB1RE MCU. Don't want to use a CB1/CM4? No problem! Marlin is supported without one. Choose between Marlin or Klipper at will.

Supports Color Touchscreens

Onboard SPI and HDMI interfaces provide you with multiple display options to cater to your budget and up your Klipper game.

Enhanced Safety

Equipped with multiple safety features, the Manta E3EZ allows you to have peace of mind while producing the best prints.

What's in the box?

BIGTREETECH MANTA EЗEZ x 1
DIY Crimp Terminal Set x 1
BTT Duck Toy x1
Thank You Card x 1

*About Manta Serials Board

Intro:

Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.

Highlights:

• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1

• Innovative integrated design, highly cost-effective,

• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4

• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs

Intro:

Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.

Highlights:

• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1

• Innovative integrated design, highly cost-effective

• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4

• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs

Compatibility & Extensibility

大字体.png__PID:ed9bedd1-1f84-444b-9833-6306ec2cb1e6
大字体.png__PID:ed9bedd1-1f84-444b-9833-6306ec2cb1e6

Dimensions & Specs

E3EZ.png__PID:72b8d7e6-0d50-400b-a851-ac1b56b283ed

MCU

ARM Cortex-M0+ STM32G0B1RE 64MHz

Motherboard Power Supply Voltage

DC12V-DC24V

Motor Supply Voltage

DC12V-DC56V

Logic Voltage

DC 3.3V

Heater Connection

Heated Bed (HB), Heater Cartridge (HE0, HE1)

HB Port Max Current

10A Continuous, 11A Instantaneous

Heater Cartridge Max Current

5A Continuous, 6A Instantaneous

Fan Port

3 x PWM, 2 x Always On

Fan Port Max Current

1A Continuous, 1.5A Instantaneous

Overall Max Current(Heater Cartridge+Driver+All Fans)

<10A

Expansion Port

BLTouch, PS-ON, PWR-DET, Fil-DET, RGB, CAN FD, SPI

Motor Driver

Support EZ5160, EZ2209, EZ2208, EZ2225, EZ2226, EZ2130, EZ6609…

Driver Mode

SPI, UART

Motor Socket

X, Y, Z (Dual Z Axes), E0, E1
5 Channels in Total

Thermistor

3 x 100K NTC

Display

SPI Touchscreen, LCD Display

PC Connection

Micro USB

Interface

USB 2.0x2, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0, SOCCard, MCU-Card

Supported Kinematics

Cartesian, Delta, Kossel, Ultimaker, CoreXY

Quick View User Manual

User Manual

The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, click here.

REVIEWS

Customer Reviews

Based on 32 reviews
91%
(29)
9%
(3)
0%
(0)
0%
(0)
0%
(0)
W
William Tuss
Works great with Klipper

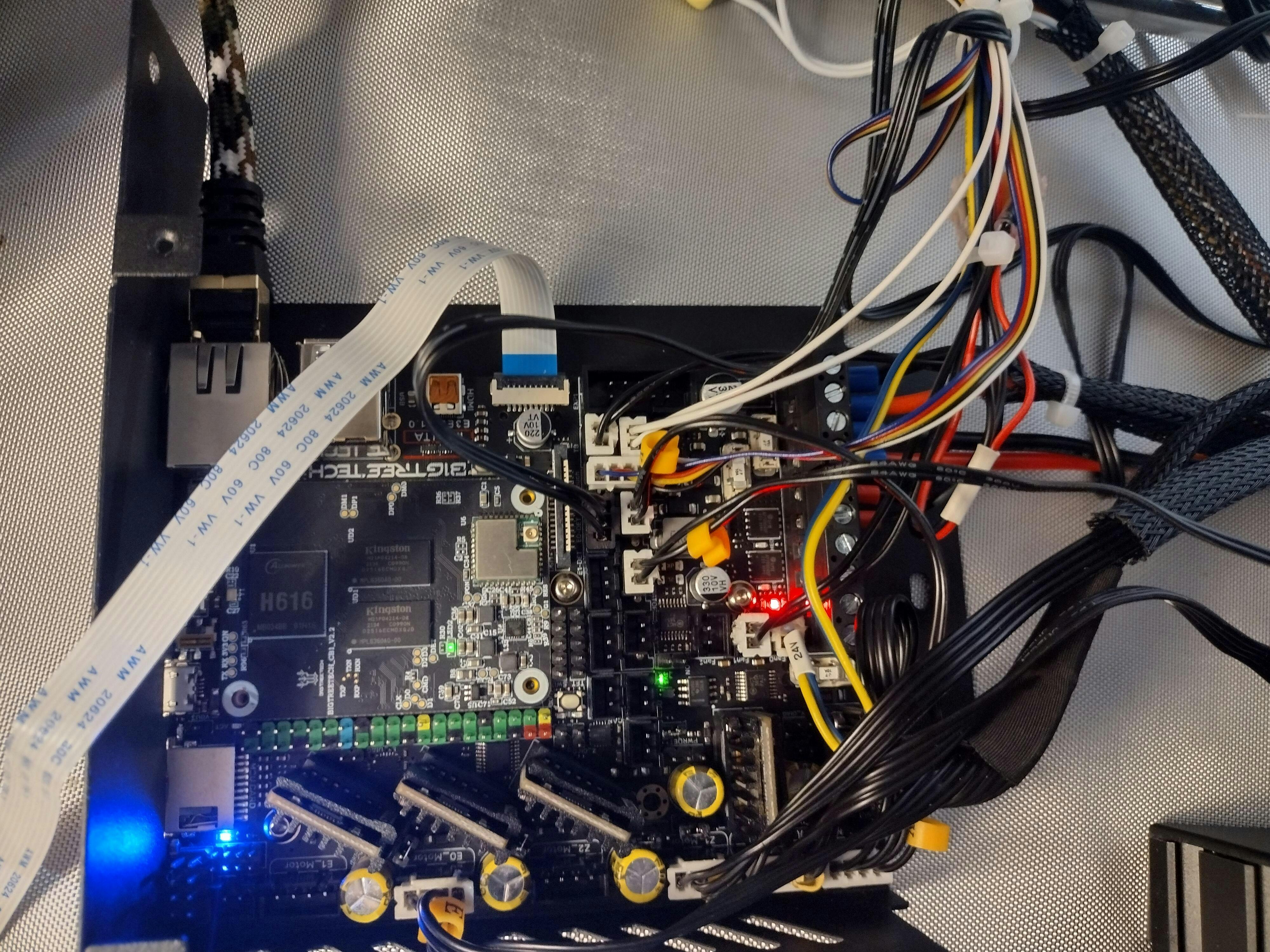

I purchased the Manta E3EZ V1.0 and CB1 for use with my ender 3V2 printer. I like that the CB1 mounts on the Manta board and replaces the raspberry PI I was using before. The setup was pretty straight forward and I am still discovering new things I can do with this combination. The three included fuses on the board are surface mount parts installed in a fuse holder. I'm not sure what the specs are for these fuses and I don't know where I would find replacements if they are ever needed. It would be nice if Bigtreetech sold replacements. Shipping was reasonably fast.

J
Jonatan Ekmark

Works perfekt

s
s g
Almost perfect

I bought this board to upgrade my aging et4. I knew it would be a lot of work as this machine is technically not compatible however i made it work. It's night and day different, the ability to access the printer anywhere is amazing and being able to watch the print live is something else. I have only 2 small complaints, and one thing people should be aware of. First is the kit does not come with an aerial. This might not bother you if your housing your board in a plastic enclosure however mines was inside the metal frame and requires an external aerial. Second the board doesn't come with mounting screws, however it does come with screws for the cb1/cm4 which is odd. I particularly like the inclusion of connector parts which were again essential. Overall i love it it has shown me my bed is heavily warped and that's why i couldn't get my et4 to print anything off size. Almost perfect, include the extras and it would be 5 stars no question. I currently rate it 4.9 stars - it's that good.

P
Peter Miklič

BIGTREETECH Manta E3EZ V1.0 for Ender 3

V
VASILE VASILACHE
Super board

A very good 3d printer board with a lot off capabilities with high performancies.
