BIGTREETECH BTT Octopus Pro V1.0 for 3D Printer

SKU: 1020000309

$53.28 $69.99 Ahorra $16.71

* Los gastos de envío se calculan en la pantalla de pagos

China
US
BTT Octopus Pro V1.0 with Chip F446
BTT Octopus Pro V1.0 with Chip F429
BTT Octopus Pro V1.0 with Chip H723
Without drivers
With 8 PCs TMC2209
With 8 PCs TMC2208 UART
NOTIFY ME WHEN IN STOCK
2022 09 06t114842

Global shipping

180-days warranty

7-days refund

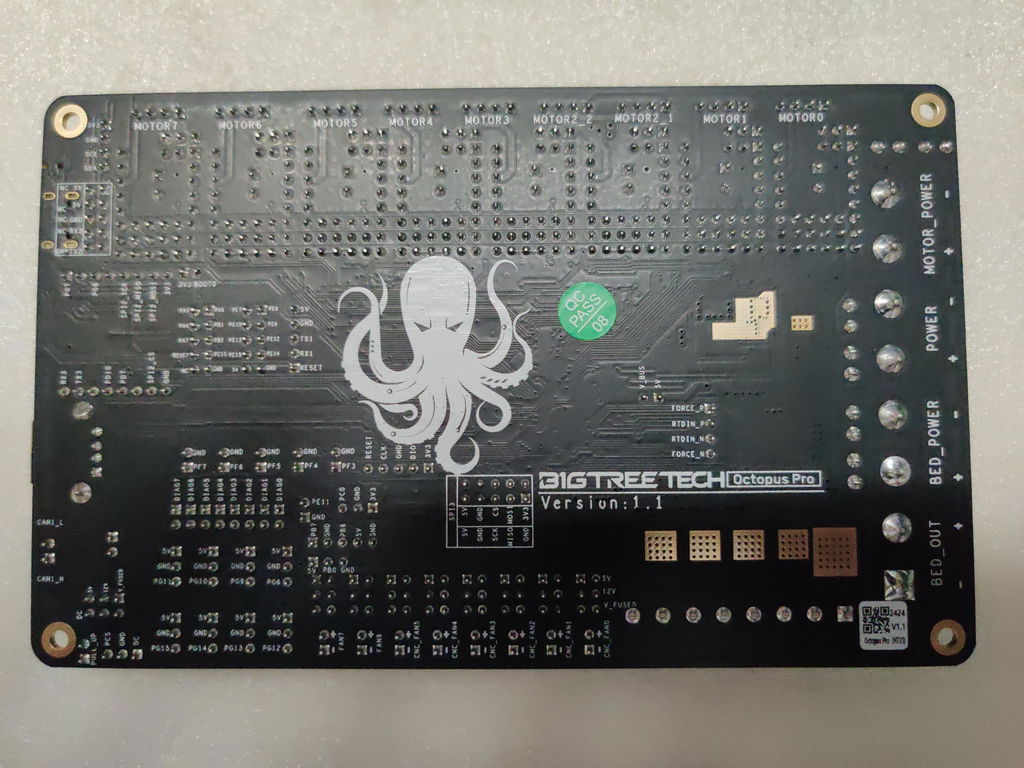

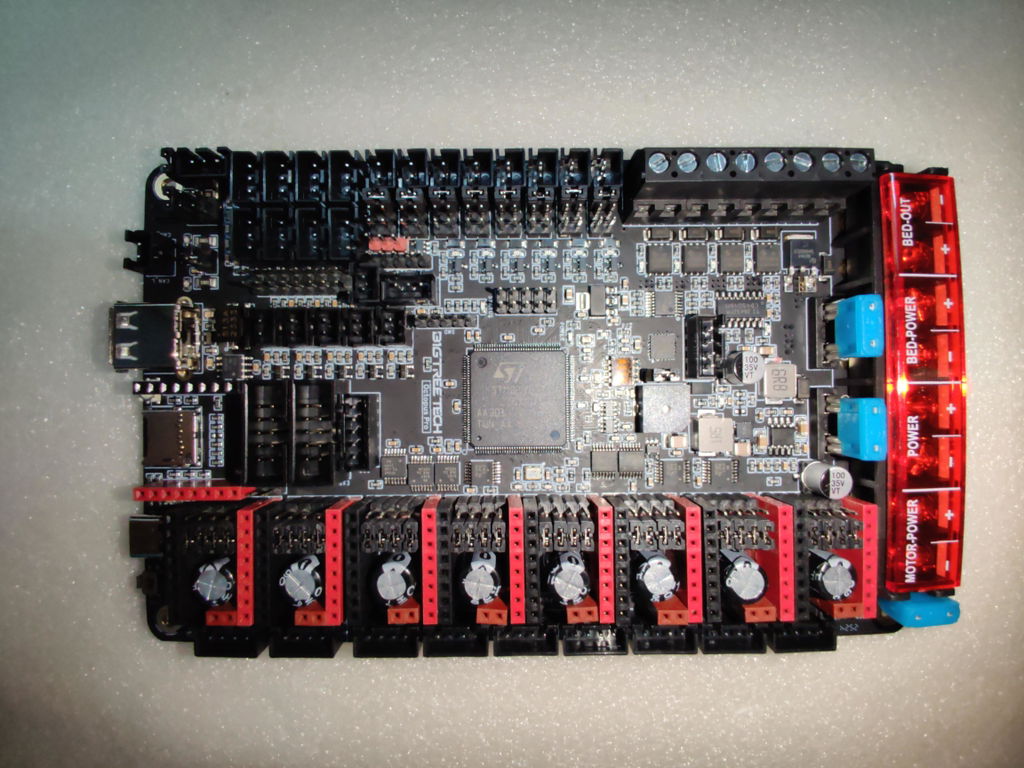

BIGTREETECH Octopus Pro V1.0 Control Board/ Mainboard

Firmware link: Click here

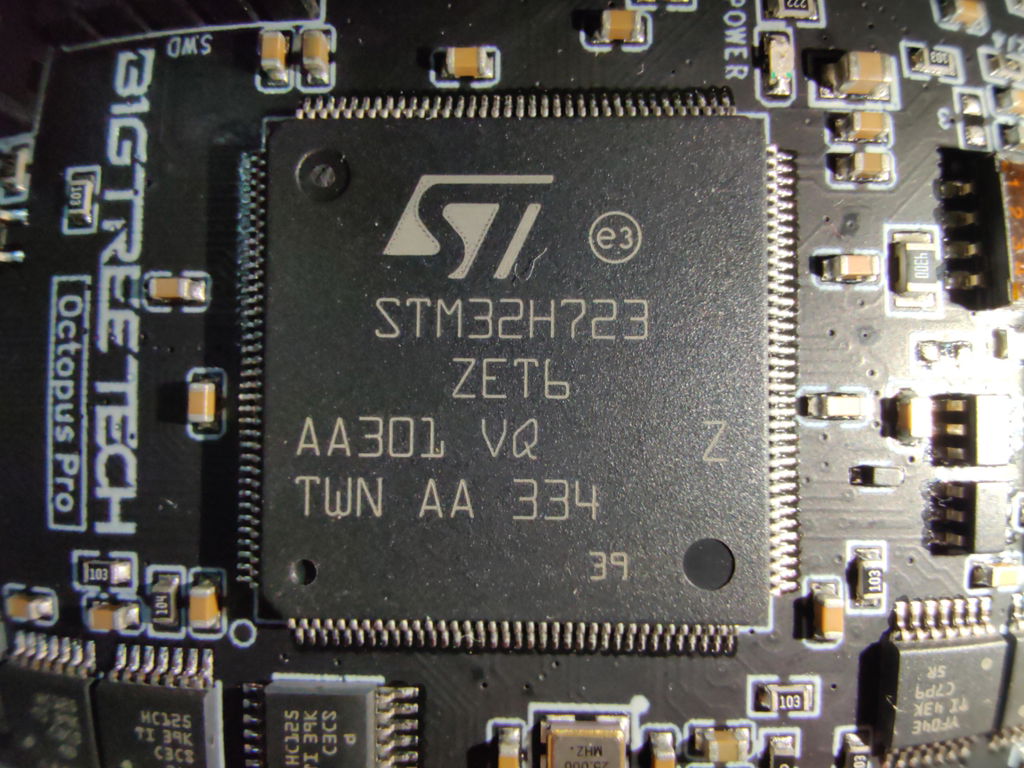

【Main Control Chip】The main control board uses 32-bit ARM-level Cortex-M4 series STM32H723ZE/ STM32F429ZE / STM32F446ZE chip with a frequency of up to 168MHz and the flash is 1MB.

【Support 60V Input】Supports up to 8 3D printer motherboards with a maximum 60V stepper motor. The motor drive power supply supports up to 60V input (only for the motor drive power supply).

【6 Controllable Fans】Up to 6 controllable fans, two normally open fans, and both support power supply voltage, 12V, 5V options.

【Update Firmware: Klipper/Marlin/RRF】Supports firmware update via DFU mode. This is where the firmware is sent to the board directly from the PC and does not require a bootloader however this method is not recommended for novice users as discussed later in this document.

【Level conversion IC】Supports proximity sensor, jumper optional pull-up resistor, supports more models, supports BL Touch.
