BIGTREETECH Manta E3EZ V1.0 for Ender 3

$59.99 USD $44.98 USD Sale
1020000407

●Running Klipper or OctoPrint.
●Board to board connection, compatible with CB1/CM4.
●Perfectly fit Ender 3.
●New technology--work with EZ driver.
●Rich interface - suitable for 3d printer DIY.

Style: Manta E3EZ V1.0

NOTIFY ME WHEN IN STOCK

  • Global Fast Shipping
  • Free Shipping USD $49+
  • 180-days Warranty
  • Earn BQ Maker Coins to get cash discounts when buying this product
Style: Manta E3EZ V1.0

Product Description:

The BIGTREETECH MANTA E3EZ V1.0 is a motherboard developed by the 3D printing team of Shenzhen Bigtree Technology Co. to help you to take your Ender 3 to the next level whether that means running Klipper or even Marlin with all of the latest features. This is our first motherboard that incorporates “Manta” technology (B2B connectors for the CB1 or CM4 modules) and “EZ” technology (the ability to use the latest EZ drivers). Simply plug in the CB1 core board and EZ drivers on the motherboard to upgrade your Ender 3 printer to run Klipper. Due to there being no need for an external raspberry pi the Manta series saves you messy cabling and results in a highly compact implementation.

Display Compatibility:

MANTA series motherboards support SPI and HDMI screens.

Files:

The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, see this link:

https://github.com/bigtreetech/Manta-E3EZ



Product Description

Direct Upgrade for Ender-3

Drop-in replacement for Ender-3. The mounting holes are in the same location which means you just need to position it and screw it down.

5 Mistake Proof EZ Driver Slots

Select between SPI and UART in firmware. No need for jumpers. No risk of reverse insertion. Plug them in with the confidence of knowing that your drivers will start up without releasing the magic smoke.

High Performance You Can Rely On

32-bit, 64 MHz ARM Cortex-M0+ series STM32GOB1RE MCU. Don't want to use a CB1/CM4? No problem! Marlin is supported without one. Choose between Marlin or Klipper at will.

Supports Color Touchscreens

Onboard SPI and HDMI interfaces provide you with multiple display options to cater to your budget and up your Klipper game.

Enhanced Safety

Equipped with multiple safety features, the Manta E3EZ allows you to have peace of mind while producing the best prints.

What's in the box?

BIGTREETECH MANTA EЗEZ x 1
DIY Crimp Terminal Set x 1
BTT Duck Toy x1
Thank You Card x 1

*About Manta Serials Board

Intro:

Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.

Highlights:

• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1

• Innovative integrated design, highly cost-effective,

• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4

• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs

Intro:

Born for Klipper. Save space and time by installing a CB1 or Raspberry Pi CM4 directly onto the motherboard to run Klipper or OctoPrint.

Highlights:

• Designed with the same connector as Raspberry Pi to ensure a perfect connection with all versions of CM4, and CB1

• Innovative integrated design, highly cost-effective

• 32-bit 64MHz ARM Cortex-M0+ series chip can run Marlin without CB1/CM4

• 40 pins GPIO, offers a wide range of connectivity to meet your DIY needs

Compatibility & Extensibility

大字体.png__PID:ed9bedd1-1f84-444b-9833-6306ec2cb1e6
大字体.png__PID:ed9bedd1-1f84-444b-9833-6306ec2cb1e6

Dimensions & Specs

E3EZ.png__PID:72b8d7e6-0d50-400b-a851-ac1b56b283ed

MCU

ARM Cortex-M0+ STM32G0B1RE 64MHz

Motherboard Power Supply Voltage

DC12V-DC24V

Motor Supply Voltage

DC12V-DC56V

Logic Voltage

DC 3.3V

Heater Connection

Heated Bed (HB), Heater Cartridge (HE0, HE1)

HB Port Max Current

10A Continuous, 11A Instantaneous

Heater Cartridge Max Current

5A Continuous, 6A Instantaneous

Fan Port

3 x PWM, 2 x Always On

Fan Port Max Current

1A Continuous, 1.5A Instantaneous

Overall Max Current(Heater Cartridge+Driver+All Fans)

<10A

Expansion Port

BLTouch, PS-ON, PWR-DET, Fil-DET, RGB, CAN FD, SPI

Motor Driver

Support EZ5160, EZ2209, EZ2208, EZ2225, EZ2226, EZ2130, EZ6609…

Driver Mode

SPI, UART

Motor Socket

X, Y, Z (Dual Z Axes), E0, E1
5 Channels in Total

Thermistor

3 x 100K NTC

Display

SPI Touchscreen, LCD Display

PC Connection

Micro USB

Interface

USB 2.0x2, LAN, DSI, CSI, SPI, 40Pin-GPIO, HDMI0, SOCCard, MCU-Card

Supported Kinematics

Cartesian, Delta, Kossel, Ultimaker, CoreXY

Quick View User Manual

User Manual

The Manta E3EZ is directly compatible with the Ender-3. Since we crammed so much into this board, we were unable to keep the size 100% compatible with other Ender machines and so minor, printable adapters are required. To check if your machine requires an adapter, click here.

Customer Reviews

Based on 38 reviews
92%
(35)
8%
(3)
0%
(0)
0%
(0)
0%
(0)
R
Richard R.
Excelente

Estupenda tarjeta, muy fácil de instalar.
Documentación muy completa

L
L.T.
is there coming a version 2 ?

i really like this printer board is there also coming v2 ?

x
xavier l.

Bought to use in a custom printer after I figured out that the skr mini e3v3.0 doesn't have 5 stepper drivers, only 5 stepper slots.

The board arrived quickly and in perfect condition. Another great BTT product!

C
Christopher B.
Excellent quality - Superb workmanship

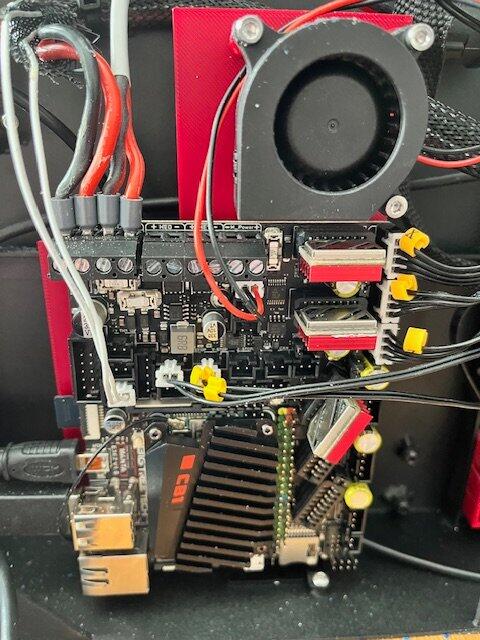

One does not quite appreciate the quality of the product until the product is in hand. Absolutely beautiful. I bought a number of items, and can say that even down to the component placement on the boards is perfect. No components out of alignment, or misaligned connectors. All the way down to the bundle of connector plugs (in black, which is nice for a 'visible' build). Honestly, it has been a while since I have been able to truly appreciate the attention to detail of a board. I have a Manta E3EZ board, and have spent more time than I'd like to admit admiring it. Well done team, keep this up, not sure anyone else can compete with your attention to detail, especially at this price point.

M
Martin N.
