Short Description:
The BIGTREETECH Pad 7 is a 7-inch IPS touchscreen tablet designed specifically for 3D printing enthusiasts. It comes with Klipper and KlipperScreen pre-installed and features a high-quality 7-inch IPS touchscreen. Also, it is not only a Klipper screen but also a mini-computer. The built-in CB1 Core Board can be detachable, you can replace it with CM4 and make it a mini-computer.
Key Features:
- Improve print quality and speed. Equipped with an ADXL345 accelerometer, it will help improve printing speed and quality remarkably, allowing for faster, more precise, and more reliable 3D printing.
- Adaptive light screen to protect eyes. The brightness of the screen varies according to the brightness of the environment it is in.
- DIY Friendly, replaceable built-in CB1 core board. We provide CB1 OS Image as well as source code and other files, so you can edit code and install it on your 3d printer. Or you can choose to replace the CB1 with CM4 and upgrade it to Linux so it can even be a mini-computer.
- Various interfaces. The tablet supports various interfaces such as USB 2.0, Ethernet, CAN, and SPI, and comes with a SanDisk 32 GB memory card for storage.
- Wide compatibility. The screen itself can be compatible with almost all FDM 3d printers. In addition, this screen is also compatible with BIGTREETECH SKR, Octopus series motherboards, EBB tool boards, etc.
Product Description
BIGTREETECH Pad 7
Not only a Klipper Pad
Klipper Pre-installed
7-inch IPS Touch Screen
1024*600
178° Viewing Angle
CB1/CM4 Compatibility
Rich Expansion Interface
Open Source
Strategic Partnership
X
The cooperation between KLIPPER and BIGTREETECH makes firmware for 3D printing enthusiasts more convenient to use and helps to further enhance the printing experience. BIGTREETECH is committed to establishing a completel 3D printing ecosystem, striving to bring more possibilities to the 3D printing industry and pushing the technologicall advancement of 3D printers to make 3D printers faster, better, and easier.
Klipper Pre-Installed
Enjoy improved print speeds and the convenience of a pre-installed Klipper firmware, allowing your 3D printer to operate more efficiently and complete projects faster than ever before, while also saving you time on setup and configuration.
Upgrade Your Printing Speed and Quality
With the BIGTREETECH ADXL345 Module and Klipper's Input Shaper, you can elevate your print quality to new heights and achieve the finest model quality possible.
Enjoy Wireless Printing
Pad 7 provides you the flexibility to control your 3D printer either through its intuitive touchscreen or by wirelessly connecting to your smartphone, tablet, or computer via Wi-Fi.
Powered by BIGTREETECH CB1 Core Board
Featuring a pre-installed CB1, the Allwinner H616 ARM Cortex-A53 processor (64-bit, 1.5GHz), provides a powerful computing platform for Klipper's smooth and seamless operation.
(Note: The CB1 can be detachable. If changing it to CB1 eMMC, it requires the screws and gaskets originally installed on CB1. If changing it to CM4, the CM4 replacement kit is already included in the package.)
Support running Klipper or Linux
Pad 7 is a KlipperScreen that can be used while printing, but it can also running Linux that can be used for daily entertainment, like watching videos or browsing the Internet.
Explore the Possibilities with Open Source
Pad 7 is open source, allowing developers and users to freely access and modify the source code to meet their personalized needs.
Compatibility & Expandability
Wide Compatibility
Thanks to open source, transferred from SD card or USB port, users can change firmware by edit the code. The Pad 7 can support Voron 2.4, VZbot, Ender-3, BIQU B1 SE Plus, etc.
*Note: At the moment the BIQU B1 is not fully supported by the Pad 7. If you plan to use the Pad 7 with a B1 then you may experience rare connectivity dropouts. Our engineers are working to resolve this. Other printers are unaffected.
Rich Connectivity
• USB-A *3
• TF Card Slot
• USB-C
• CAN bus
• RJ45
• SPI Interface
• 3.5mm Audio Jack
*Note: At the moment the BIQU B1 is not fully supported by the Pad 7. If you plan to use the Pad 7 with a B1 then you may experience rare connectivity dropouts. Our engineers are working to resolve this. Other printers are unaffected.
Improved Using Experience
7- inch IPS Touch Screen
Features a 7-inch IPS capacitive touch screen with a resolution of 1024 × 600 and a 60Hz refresh rate, providing high definition and rich colors.
• Resolution: 1024×600
• View angle: 178°
• Status indicator: RGB
• Volume adjustable via button: Speaker
Touch Feedback
Each tap is met with subtle vibrations, providing a tactile confirmation of your actions.
Auto Backlight Adjustment
Pad 7 automatically adjusts its screen brightness based on your surroundings, providing optimal visibility and reducing eye strain.
Durable and Reliable
Featuring a high-quality IPS screen combined with a meticulously designed shell structure, ensuring excellent impact resistance. Even in the event of accidental drops, it is less likely to shatter or get damaged.
Magnetic Holder
Adopting a magnetic suction bracket, it is more convenient to adsorb when using the bracket.
Dimensions & Specs
Size
7 inches
Resolution
1024×600
Refresh Rate
60Hz
Viewing Area
154.2×85.92
Viewing Angle
178°
Brightness
500 Cd/㎡
Input
DC12V 2A
Rated Power
7.3 W
Display Port
HDMI
Touch Port
USB-HID
PC Connection
Type-C (CM4 eMMC Writing OS)
Interface
USB 2.0×3, Ethernet, CAN, SPI, SoC-Card, 3.5mm Jack
Core Board: BIGTREETECH CB1 V2.2, 1GB, with a 32 GB Memory Card
What's in the box?
Quick View User Manual
REVIEWS
Customer Reviews

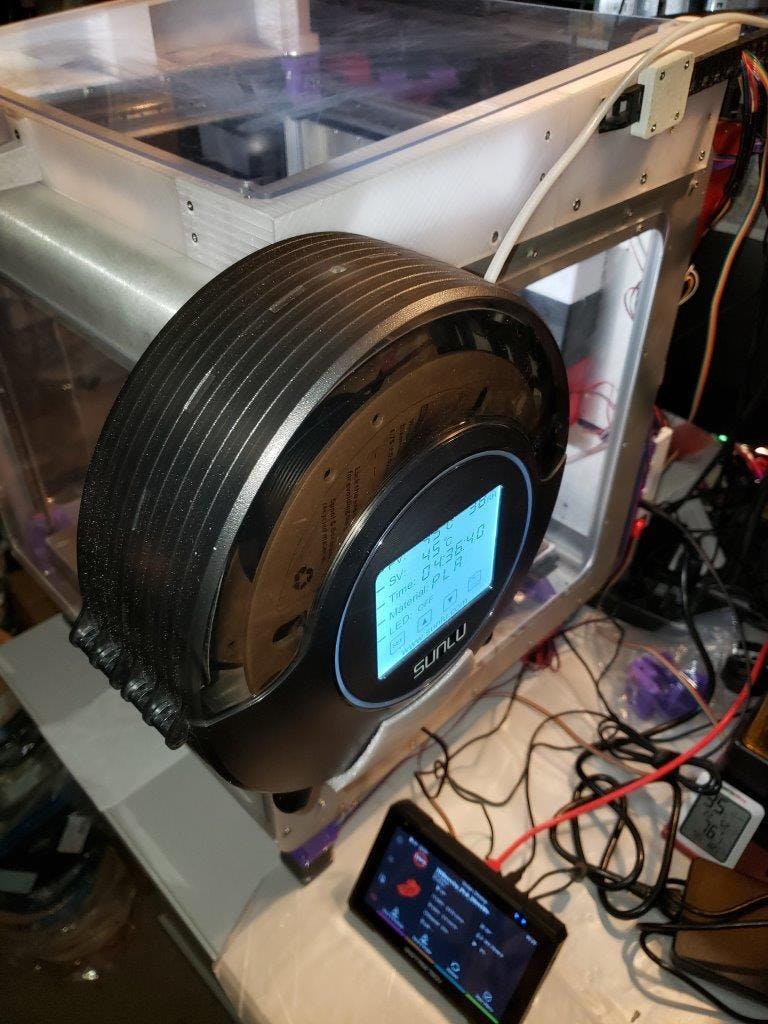

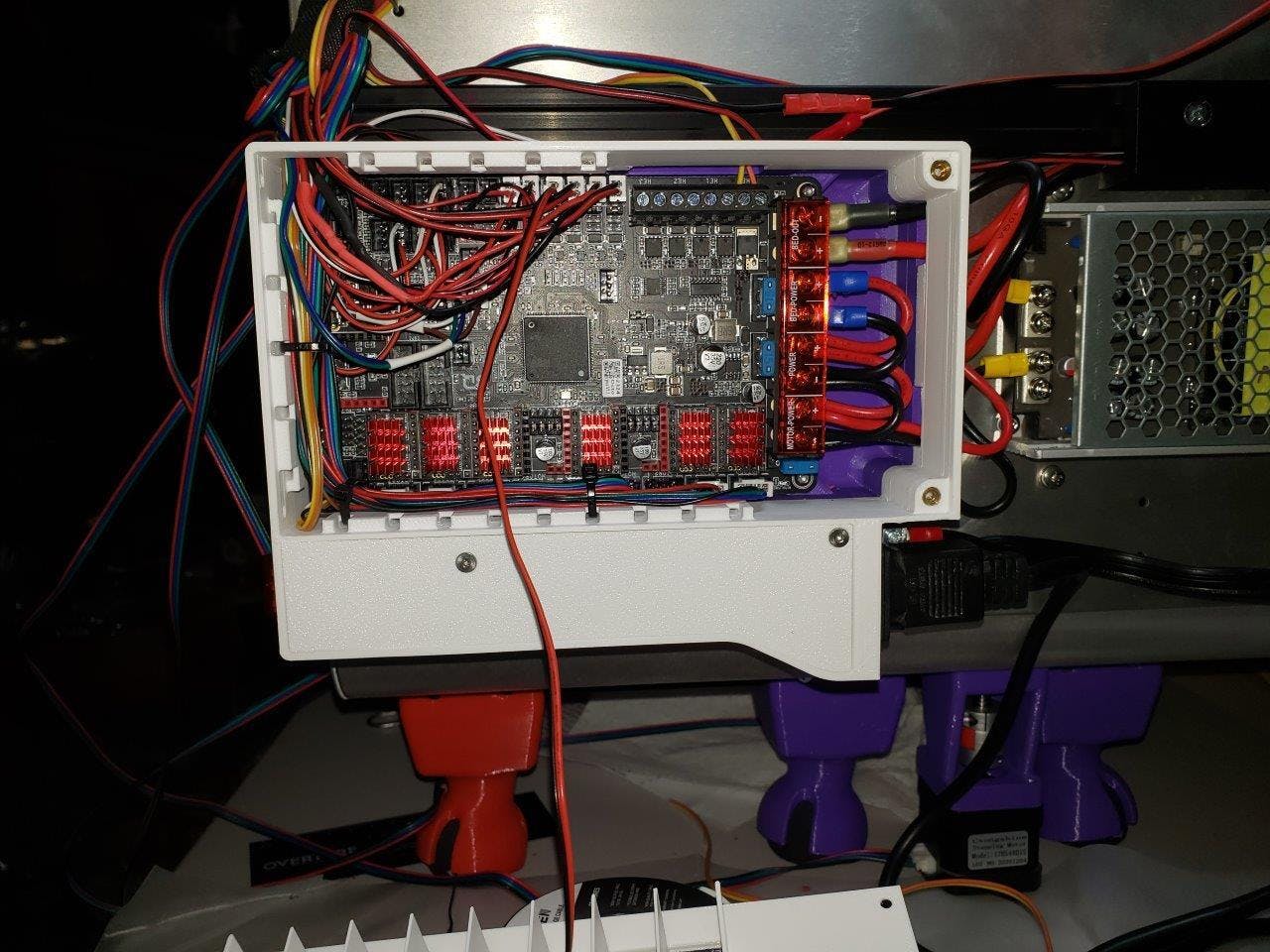

Used as controller for heavily modified CoreXY printer with new Octopus v1.1. Some work getting configuration updated, this is a custom build, some effort was expected. After reading the user manuals, but mostly the Klipper Installation and Configuration guides, the Pad 7 is running with no issues. Very nice user interface, touch screen provides a perfect minimalist system, although I continue to use the web interface for uploading prints and some control (case_lighting, for example). Nice that it came with the ADXL345, needed to design a new adapter for my E3D Hemera, but easy to connect and configure.
One of the odd issues was that the 32GB microSD card was very difficult to remove. I had to take a small screwdriver to help wiggle it out (in the end I didn't need to remove the SD card, it's really just used as fixed memory for the CB1 on the Pad 7).
It would be useful to have a simplified, entry level, introduction and configuration guide especially for those new to Klipper. The user manual really just talks about mechanical aspects, like updating the CB1 to CM4, which is useful but not the first most important thing. It does talk about ADXL345 and firmware updates, but without a lot of context. Something focusing on simplified configuration files, specific pointers to the Klipper documentation for the configuration files being discussed, etc. It's easy to get lost in all the details of Klipper, where it is also easy to get the system up and running if there are just a few pointers.
Un Pad d'un qualité incroyable, écran très réactif et possibilité de mettre plusieurs imprimantes.
Having gone the easy path with Crealities pad I gave up and bought the Pad7. The difference was massive, the Pad7 after a few problems setting up was amazing. I highly recommend this. If I had one criticism it would be you have to remove the installed programs and reinstall several versions to achieve full capability. Perhaps Btt could offer another image which had this pre setup for people with more than 1 printer.
I don’t normally do reviews esp from my phone so bear with me.
It was a really simple setup. I have been tinkering with klipper for a minute and this is the easiest setup I have done. Given the cost of a raspberry pi, screen and the time to get it all up and going, this is a good value. The case is well designed. I would buy one of these for all ten of my machines if I had the budget for it. I try not to be a fan boy but it’s hard not to be. I have a lot of ducks sitting around for someone that doesn’t do YouTube or sell prints. I pretty much give away all of my prints. Hope to change that soon and this pad will help. Thanks BIQU!!
Viene todo ya preparado, en pocos minutos listo para comenzar a imprimir con Klipper, estupendo
