BIGTREETECH SKR MINI E3 V3.0 32-Bit-Steuerplatine für Ender 3/Ender 3 Pro/Ender 5/Ender 5 plus/CR-10

$59.99 USD $29.99 USD Sale
1060000511


Versand ab: China
Stil: Ohne Kabel (für Ender 3 V2 Bildschirm)

  • Global Fast Shipping
  • Free Shipping USD $49+
  • 180-day Warranty
  • Earn BQ Maker Coins to get cash discounts when buying this product
Compatible 3D printers

Ender 3, Ender 3 Pro, Ender 5, Ender 5 Plus, CR-10 (BTT provides compiled firmware for Ender 3 and Ender 5)

Shipping & Warranty

Most regions enjoy free shipping on orders over $49. Accessories are covered by a 180-day warranty, offering replacement but not repair.

Versand ab: China
Stil: Ohne Kabel (für Ender 3 V2 Bildschirm)

New Breakthrough | The rebirth of mini e3

SKR MINI E3 V3.0

  • Tailored for Ender 3, with compatibility extended to Ender 3 Pro/Ender 5/Ender 5 Plus/CR-10.
  • Utilizes the STM32G0 chip for reliable and consistent data transmission.
  • Compatible with Marlin & Klipper firmware, ensuring versatile software support.
  • Enables Multiple Function Expansions for enhanced customization and adaptability.

Supports Multiple Function Expansion Modules

  • Z-PROBE --- Bed-levelling module, such as BIQU Microprobe V2.0.
  • Fil-DET --- Filament detection module, such as BTT SFS V2.0
  • POWER-DET --- Power-off resume module, such as BTT UPS V1.0
  • PS-ON --- Automatic shutdown module, such as BTT Relay V1.2

5V Power Supply for BL Touch, TFT, RGB Interfaces

Option 1, To use the onboard 5V PSU, short the pins using jumper.

Option 2, To use an exteral BIGTREETECH DCDC5V V1.0 module, short the pins using jumper.

Wide Compatibility

Not only Ender 3, the SKR MINI E3 v3.0 is also compatible with Ender 3 Pro, Ender 5, Ender 5 Plus, CR-10, etc.

Compared to V2.0, SKR MINI E3 V3.0 adds one more fan interface, in total it supports 3 CNC fans.

To connect the corresponding axes with the jump caps choose the sensorless homing function. Note: If choose this function, the external ENDSTOP can't be used.

Offering two types of ports that can be connected with different screen.

Specification

Product Size

103.75*70.25mm

Board Layer

4

MCU

ARM Cortex-M0+ STM32GOB1RET6/STM32GOBORET6

Power Input

DC 12/24V

Logic Voltage

3.3V

Motor Driver

UART mode of on-board TMC2209

Interfaces of Motor Driver

XM, YM, ZAM, ZBM, EM

Interfaces of Temperature Sensor

TH0, THB, 2-way 100K NTC (RTD)

Compatible Display

2.4-inch TFT, 3.5-inch TFT, Ender 3 original LCD12864 screen, etc.

PC Communication Interface

USB Micro B type, easy to plug, communication baud rate 115200

File Format

G-code

Recommended Software

Cura, Simplify 3D, Pronterface, Repetier-host, Makerware

What's in the box?

SKR MINI E3 V3.0 *1

USB Cable *1

BTT Duck *1

Files

Frequently Asked Questions About Product

Does the SKR Mini E3 V3 come with a SD card?

Our control board comes without a SD card.

How many drivers does SKR Mini E3 V3 have?

Four drivers integrated.

Where can I find the firmware for my printer?

Our engineer currently provide the compiled Marin firmware for Ender 3, Ender 5. But if you have other types of printer, you need to find or complie the firmware for your printer. Of course, we recommand you use Klipper, then the complie process will be easier.

Is this motherboard compatible with Ender 3 original screen?

Yes. If you are using Ender 3 V2, be sure to also get the cable to connect to the OEM screen.

Will this board support Octopi?

Yes, it will.

Customer Reviews

Based on 100 reviews
91%
(91)
6%
(6)
1%
(1)
2%
(2)
0%
(0)
K
Konrad
Great open hardware board

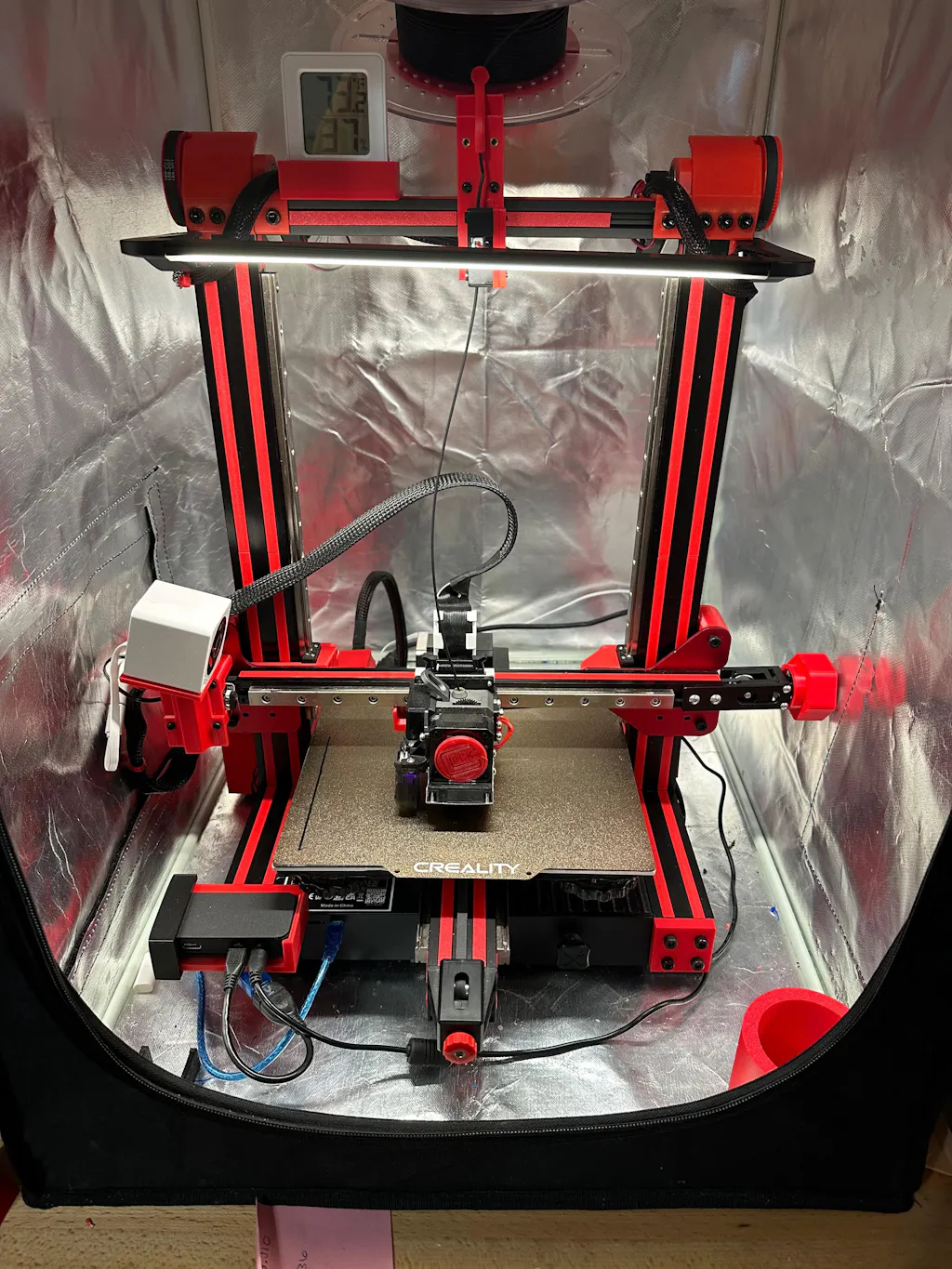

This board replaced my broken Creality board. The footprint is almost identical to the original, but has some additional features that are really useful for me. Namely an additional stepper driver for a proper dual z axis setup, three controllable fan headers, and the stepper drivers are wired with uart support, so they are configurable in klipper. I also love that all design files, schematics, pinouts, etc. are available on GitHub. 3D Printing is where it is today because of open hardware and free software.

T
Thomas W.
BIGTREETECH SKR MINI E3 V3.0 32 Bit Control Board

The board fits nicely in the printer. Well documented.

P
Pantelis V.

BIGTREETECH SKR MINI E3 V3.0 32 Bit Control Board for Ender 3/Ender 3 Pro/Ender 5/Ender 5 plus/CR-10

J
John C.
John Cade

This works very well easy to install
Has a lot of features and is so quiet compared to the standard board.
i have sent off for the touch screen to make it better to use.

E
Edvard K.
Great motherboard

Works great, looks even better.
