BIGTREETECH EBB SB2209/SB2240 CAN V1.0 for Voron StealthBurner

SKU: 1020000425*1+1060000637*1

Regular price $25.68 $30.16

/
Product Description EBB SB2240/2209 CAN CAN/USB-C Communication | TMC2240/2209 Driver | For Voron StealthBurner CAN Bus Communication Built-in TMC2240/TMC2209Driver For Voron StealthBurnerDrop-in installation Support PT100/PT1000 Onboard Temperature Sensor 2 x 2 pins Fan, 1 x 4 pins Fan5V/12V/24V Selection Drop-in Installation Careful...

American Express Apple Pay Mastercard PayPal Visa


Global Shipping    180-days Warranty    7-days Refund

Earn BQ Maker Coins to get cash discounts when buying this product.

Product Description

EBB SB2240/2209 CAN

CAN/USB-C Communication | TMC2240/2209 Driver | For Voron StealthBurner

CAN Bus Communication

Built-in TMC2240/TMC2209
Driver

For Voron StealthBurner
Drop-in installation

Support PT100/PT1000

Onboard Temperature Sensor

2 x 2 pins Fan, 1 x 4 pins Fan
5V/12V/24V Selection

Drop-in Installation

Careful header spacing and location means that wiring will be a breeze. No need to solder anything thanks to the onboard header pins.

One More Thing

Add a secondary screen to the front cover of the extruder. Make your machine stand out of the crowd.

Robust and Reliable

Using high-performance, 32-bit, 64 MHz MCUs from the industry-leading STM ensures rock-solid performance with CAN bus signaling that can support higher data rates over longer distances without errors.

Latest TMC2240 Ultra-Silent Driver Chip

The TMC2240 features abundant diagnostic and protection features, such as short/open circuit protection, thermal shutdown, and under-voltage lockout. Due to internal optimizations, it can drive more current at lower temperatures, keeping your extruder running harder for longer. *EBB SB2240 CAN comes with a TMC2240, EBB SB2209 CAN or EBB SB2209 CAN (RP2040)comes with a TMC2209.*

Wiring with Control Boards

e.g.
• Manta M8P + EBB SB2240/2209 CAN + EBB SB0000 CAN
• Octopus Pro + U2C + Raspberry Pi + EBB SB2240/2209 CAN

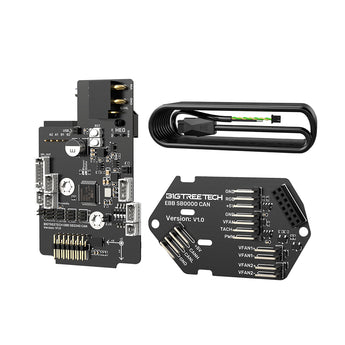

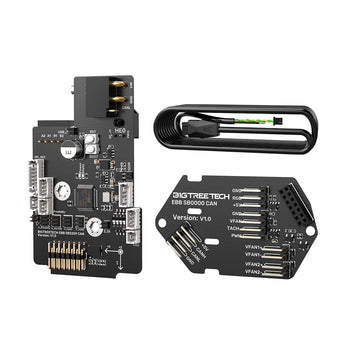

EBB SB2209/2240 includes:

• EBB SB2240/2209 CAN x1
• EBB SB0000 CAN x 1
• 3m CAN bus Cable x 1
• Heat Sink x 1
• DIY Crimp Terminal Set x 1
• Jumper Cap Set x 1
• Zip Ties x 2
• Fixing Screw Set x 1
(Gifts: 30PIN wire x 1
100K NTC B3950 thermistor x 1)

 Dimensions & Pinout

Specifications



EBB SB2240 CAN

EBB SB2209 CAN

EBB SB2209 CAN
(RP2040)


Connector

GH1.25

GH1.25

PH2.0 for Easier Crimping

Onboard Driver

TMC2240

TMC2209

TMC2209

Driver Working Mode

SPI

UART

UART

MCU

Arm® 32-bit Cortex®-MO+ CPU STM32GOB1CBT6 64MHz

Arm® 32-bit Cortex®-MO+ CPU STM32GOB1CBT6 64MHz

RP2040

Input Voltage

DC12V-DC24V 9A

Logic Voltage

DC 3.3V

Heater Connection

Heater Cartridge (E0), Max Output Current: 5A

Onboard Sensor

ADXL345

Fan Port

2x PWM (FANO, FAN1), 1 x4 pins Fan Port

Voltage Selection for 2 pins fans

Independent voltage for each fan.

Independent voltage for each fan.

Same voltage for both fans

Fan Port Max Current

1A Continuous, 1.5A Instantaneous

Stepper Motor Interface

EM

Temperature Sensor Interface

1x 100K NTC or PT1000(TH0), 1 x PT100/PT1000 Selectable

1x 100K NTC or PT1000(TH0), 1 x PT100/PT1000 Selectable

1x 100K NTC(TH0), 1 x PT100/PT1000 Selectable

USB Communication Interface

USB-Type-C

DCDC 5V Output Max Current

1A

Expansion Port

EndStop, ABL, RGB, PT100/PT1000, USB, CAN, SPI

EndStop, ABL, RGB, PT100/PT1000, USB, CAN, SPI

EndStop, ABL, RGB, PT100/PT1000, USB, CAN

Quick View User Manual
