Product Description
An Innovative and Easier Way to Run Your Klipper
Manta M4P/M5P/M8P are born for Klipper running, they allow a direct installation of the BIGTREETECH CB1/Raspberry Pi CM4 to run the Linux system, then the Klipper.
Board-to-Board Connector
Designed with the same connector as Raspberry Pi, giving you a confident connection with all versions of CM4, and definitely, CB1 or CB1 eMMC. A screw-reinforced installation is available, too.
Compatibility & Extensibility
*Note:
•The HDMI, TFT35 SPI, and USB Camera can only work with CB1.
•The CSI/DSI port can only work with CM4.
Functions & Application
Manta M4P
✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0BORE chip, more stable and faster.
✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.
✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.
✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.
🌟The M4P & CB1 can be the best choice for Voron V0, Ender 3 etc.
Manta M5P
✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0B1RET6 chip, more stable and faster.
✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.
✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.
✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.
✅ Selectable CNC fan voltage, 5V/12V/24V.
✅ Added eFuse circuit protection. It will faster disconnected on overload, and automatically reset if the overload is gone, which will greatly reduce the motherboard burnout caused by short circuits or ignition.
✅ Reserved Can Bus port can be connected with EBB CAN, which will simplify the wiring and provide strong anti-interference ability.
🌟The M5P & CB1 can be the best choice for Voron V0, Ender 3, etc.
Manta M8P
✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0B1VET6 chip, more stable and faster.
✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.
✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.
✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.
✅ Selectable CNC fan voltage, 5V/12V/24V.
✅ Added eFuse circuit protection. It will faster disconnected on overload, and automatically reset if the overload is gone, which will greatly reduce the motherboard burnout caused by short circuits or ignition.
✅ Reserved Can Bus port can be connected with EBB CAN, which will simplify the wiring and provide strong anti-interference ability.
🌟The M8P & CB1 can be the best choice for Voron 2.4, VzBot, etc.
Dimensions & Specs
CB1/CB1 eMMC
CPU
ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz
GPU
Mali G31 MP2, Support OpenGL3.2
RAM
512MB/1GB DDR3L SDRAM(The eMMC version has only 1GB available)
Storage Capacity Options:
(for eMMC Version Only)
16GB, 32GB
Input Voltage
5V±5%/2A
Output Voltage
3.3V±2%/100mA 1.8V±2%/100mA
WiFi
2.4G/802.11 b/g/n
Display
Compatible with HDMI2.0A Interface, Support 4K Displays
Connectivity
USB2.0 Interface, supports 100M Ethernet+ 100M WiFi
*The CB1/CB1 eMMC does not support DSI/CSI output at this time*
Manta M4P
Manta M5P
Manta M8P V1.1
MCU
STM32G0BORE
STM32G0B1RET6
STM32G0B1VET6
Frequency
64 MHz
64 MHz
64 MHz
Size
160 x 95 mm
137.4 x 95 mm
170 x 102.7 mm
Driver Slot
4
5
8
eFuse
X
√
√
Fan Port
PWM Fan x 4
SoC Fan x 1
PWM Fan x 2
SoC Fan x 1
Always on Fan x 1
2 pins PWM Fan x 5
4pins PWM Fan x 2
Always on Fan x 1
SoC Fan x 1
Fan Voltage Selection
(24V,12V,5V)
X
√
√
Heater Cartridge Connector
1
2
4
Thermistor
100K NTC x 2
100K NTC x 3
100K NTC x 5
USB
1 USB-OTG
3 USB-Host 2.0
1 USB-OTG or UART to USB
3 USB-Host 2.0
1 USB-OTG or UART to USB
3 USB-Host 2.0
HDMI
HDMI x 1
Micro HDMI x 2
Micro HDMI x 2
CAN bus Interface
X
√
√
*For more information, please find the corresponding manual*
Quick View User Manual
Customer Reviews
BIGTREETECH Manta M4P/M8P/M5P Control Board running Klipper with CB1/CM4

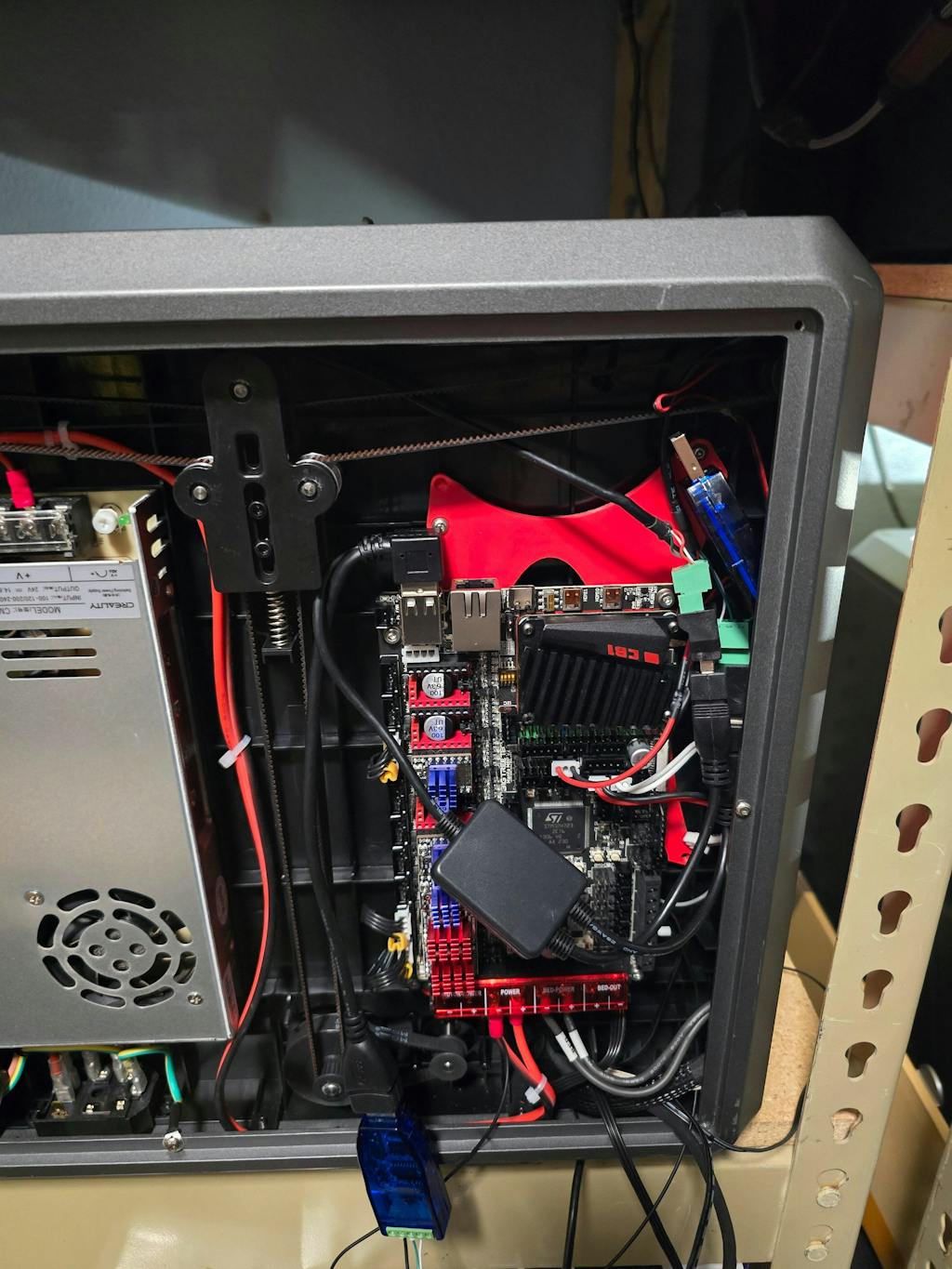

I got this combo to enable a CNC machine as a 3D printer. It’s a great hardware for any upgrades plenty of connections and options. The only problem is with the documentation from BTT/BIQU. It’s very hard to find and in the case of the M5P is questionable as in some places it refers to M8P or M4P. I have yet to find a schematic for the M5P. Software instructions are also a bit spotty. The basic setup was great, easy to follow, but then the assumption is that you are proficient on Klipper and Linux.
