BIGTREETECH Manta M4P/M8P/M5P Control Board running Klipper with CB1/CM4

$32.69 USD $25.26 USD Save 23%
1020000405

Shipping from: China
Option: CB1 (1GB RAM)
NOTIFY ME WHEN IN STOCK
American Express Apple Pay Mastercard PayPal Visa

  • Global Fast Shipping
  • Free Shipping USD $49+
  • 180-days Warranty
  • Earn BQ Maker Coins to get cash discounts when buying this product

Product Description

BTT Manta M4P/M5P/M8P controller display

An Innovative and Easier Way to Run Your Klipper

Manta M4P/M5P/M8P are born for Klipper running, they allow a direct installation of the BIGTREETECH CB1/Raspberry Pi CM4 to run the Linux system, then the Klipper.

The B1 core board can be directly mounted on the M8P motherboard.

Board-to-Board Connector

Designed with the same connector as Raspberry Pi, giving you a confident connection with all versions of CM4, and definitely, CB1 or CB1 eMMC. A screw-reinforced installation is available, too.

Compatibility & Extensibility

CAN Bus solution with Manta control boards.
Manta control board can be connected to water cooling kit.
btt manta is perfectly compatible with HDMI screens.
It could connect to ADXL345 via SPI port.
BIQU Microprobe can also be used with Manta Boards.
TFT35 SPI is a smaller sceen to choose to make it compatible with Manta boards.
The Manta board mounted with CM4 can work with a camera or monitor.
btt manta board can also work with other USB cameras.

*Note:
•The HDMI, TFT35 SPI, and USB Camera can only work with CB1.
•The CSI/DSI port can only work with CM4.

It shows the M4P/M5P/M8P interface diagram, which includes RGB, fan, and screen ports.
It shows the M8P V2 interface diagram, which includes RGB, fan, and screen ports.

Functions & Application

It has 32-bit powerful chip to support it.

Manta M4P

✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0BORE chip, more stable and faster.

✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.

✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.

✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.

🌟The M4P & CB1 can be the best choice for Voron V0, Ender 3 etc.

There is a Board-to-board connector, and it can fit all versions of CM4.

Manta M5P

✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0B1RET6 chip, more stable and faster.

✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.

✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.

✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.

✅ Selectable CNC fan voltage, 5V/12V/24V.

✅ Added eFuse circuit protection. It will faster disconnected on overload, and automatically reset if the overload is gone, which will greatly reduce the motherboard burnout caused by short circuits or ignition.

✅ Reserved Can Bus port can be connected with EBB CAN, which will simplify the wiring and provide strong  anti-interference ability.

🌟The M5P & CB1 can be the best choice for Voron V0, Ender 3, etc.

Rich expansion interfaces are the icing on the cake for a powerful motherboard.

Manta M8P V1.1

✅ Installed with 32-bit 64MHz ARM® Cortex-M0+ STM32G0B1VET6 chip, more stable and faster.

✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.

✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.

✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.

✅ Selectable CNC fan voltage, 5V/12V/24V.

✅ Added eFuse circuit protection. It will faster disconnected on overload, and automatically reset if the overload is gone, which will greatly reduce the motherboard burnout caused by short circuits or ignition.

✅ Reserved Can Bus port can be connected with EBB CAN, which will simplify the wiring and provide strong  anti-interference ability.

🌟The M8P V1.1 & CB1 can be the best choice for Voron 2.4, VzBot, etc.

Manta M8P V2.0 is the latest version, and update more expansion ports.

Manta M8P V2.0

✅ Installed with 32-bit 550MHz ARM® Cortex-M0+ STM32H723ZET6 chip, the frequency is more faster.

✅ Designed with the same connector with Raspberry Pi, giving you a confident connection with all versions of CM4,definitely, CB1. Also, a screw-reinforced installation is also avaliable.

✅ It has rich expansion ports, can support various expansion modules, such as BL Touch, LCD screen, RGB light, auto shutdown, etc.

✅ TPS5450-5A Power Chip The 5A output perfectly matches the power supply need of Raspberry Pi.

✅ Selectable CNC fan voltage, 5V/12V/24V.

✅ Added eFuse circuit protection. It will faster disconnected on overload, and automatically reset if the overload is gone, which will greatly reduce the motherboard burnout caused by short circuits or ignition.

✅ Reserved Can Bus port can be connected with EBB CAN, which will simplify the wiring and provide strong  anti-interference ability.

Update:All new ID. Added I2C,5V Servo, Expanded IO, and TFT interface. Using 12V power solution. Optimized 5V power supply circuit.

🌟The M8P V2.0 & CB1 can be the best choice for Voron 2.4, VzBot, etc.

Dimensions & Specs

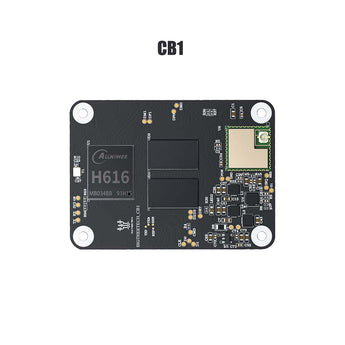

CB1/CB1 eMMC

CPU

ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz

GPU

Mali G31 MP2, Support OpenGL3.2

RAM

512MB/1GB DDR3L SDRAM(The eMMC version has only 1GB available)

Storage Capacity Options:
(for eMMC Version Only)

16GB, 32GB

Input Voltage

5V±5%/2A

Output Voltage

3.3V±2%/100mA 1.8V±2%/100mA

WiFi

2.4G/802.11 b/g/n

Display

Compatible with HDMI2.0A Interface, Support 4K Displays

Connectivity

USB2.0 Interface, supports 100M Ethernet+ 100M WiFi

*The CB1/CB1 eMMC does not support DSI/CSI output at this time*



Manta M4P/M5P

Manta M8P V1.1

Manta M8P V2.0

MCU

STM32G0BORE/STM32G0B1RET6

STM32G0B1VET6

STM32H723ZET6

Frequency

64 MHz

64 MHz

550 MHz

Driver Slot

4 / 5

8

8

eFuse

X / √

Fan Port

PWM Fan x 4
SoC Fan x 1/
PWM Fan x 2
SoC Fan x 1
Always on Fan x 1

2 pins PWM Fan x 5
4pins PWM Fan x 2
Always on Fan x 1
SoC Fan x 1

2 pins PWM Fan x 5
4pins PWM Fan x 2
Always on Fan x 1
SoC Fan x 1

Fan Voltage Selection
(24V,12V,5V)

X / √

Heater Cartridge Connector

1 / 2

4

4

Thermistor

100K NTC x 2 / 100K NTC x 3

100K NTC x 5

100K NTC x 5

USB

1 USB-OTG
3 USB-Host 2.0/
1 USB-OTG or UART to USB 3 USB-Host 2.0

1 USB-OTG or UART to USB
3 USB-Host 2.0

1 USB-OTG or UART to USB
3 USB-Host 2.0

HDMI

HDMI x 1 / Micro HDMI x 2

Micro HDMI x 2

Micro HDMI x 2

I2C Interface

X

X

CAN bus Interface

X / √

*For more information, please find the corresponding manual*

Quick View User Manual

Manta M4P

Manta M4P user manual

Manta M5P

Manta M5P user manual

Manta M8P V1.1/V2.0

Manta M8P V1/V2 user manual
